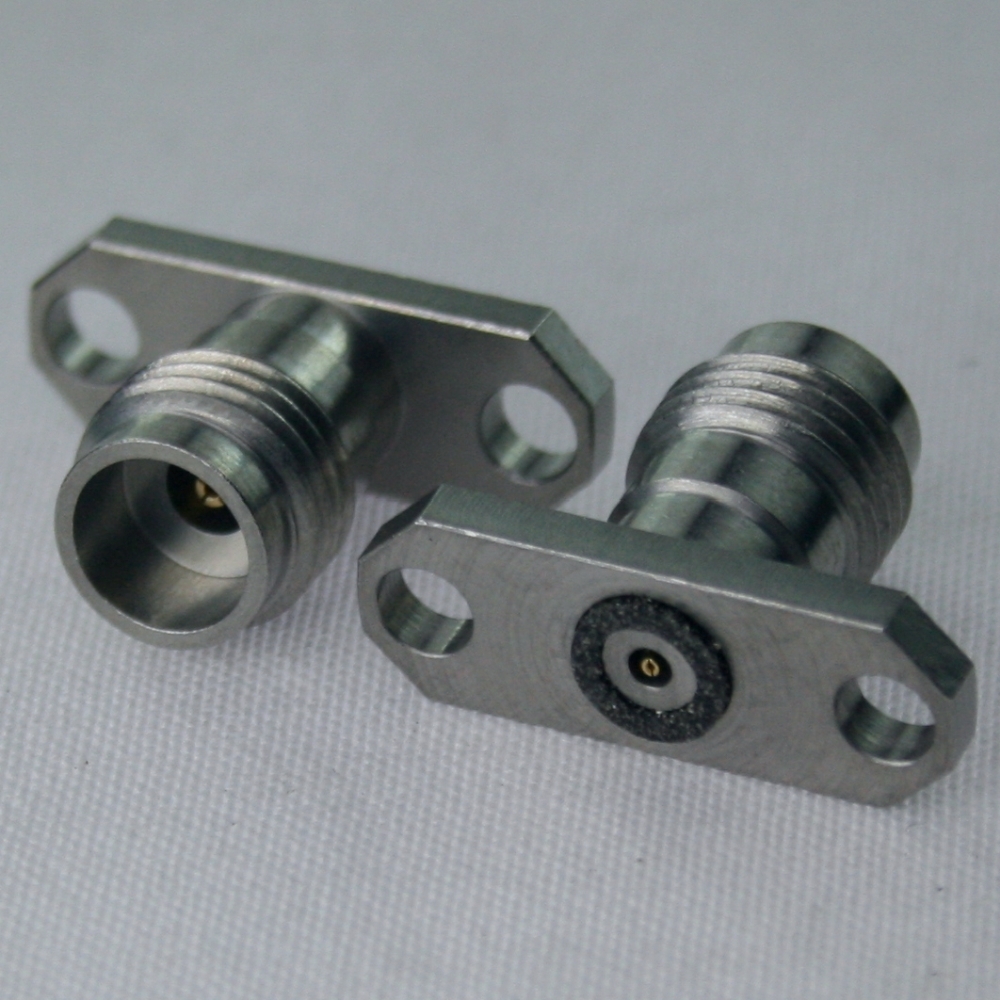

2.4mm field replaceable jack, ϕ15.9mm (.625inch) 2 hole flange with EMI gasket, accepts ϕ0.51mm (.020inch) pin, 50GHz VSWR1.18
Jyebao 2.4-8F26A-GA20 - RF Connectors: Field Replaceable Connector
| Connector Series | 2.4mm |
|---|---|
| Connector Gender | Jack |
| Configuration | 2 hole flange ϕ15.9mm (.625inch) |
| EMI gasket or Metal Contact ring | EMI gasket |
| Frequency & Max VSWR | 50GHz VSWR1.18 |
| Accepts pin size | ϕ0.51mm (.020inch) |
| Hermetic/IP Rating | |
| Body Material & Plating | Stainless Passivated |
| Remarks |
