2.92mm field replaceable jack, ϕ12.7mm (.500inch) 2 hole flange with metal ring, accepts ϕ0.23mm (.009inch) pin, 40GHz VSWR1.15 (~SW PN 1014-07SF)

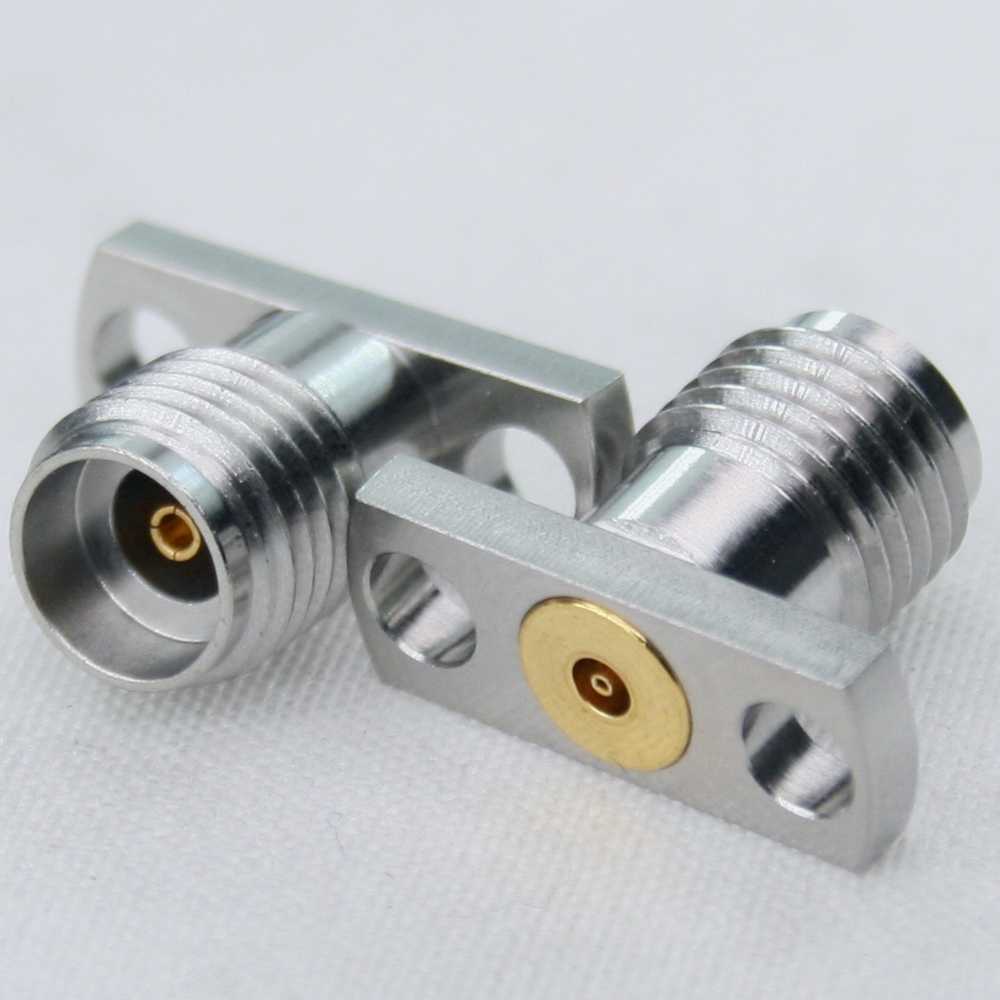

Jyebao K8F26B-EM09 - RF Connectors: Field Replaceable Connector
| Connector Series | 2.92mm |
|---|---|
| Connector Gender | Jack |
| Configuration | 2 hole flange ϕ12.7mm (.500inch) |
| EMI gasket or Metal Contact ring | Metal contact ring |
| Frequency & Max VSWR | 40GHz VSWR1.15 |
| Accepts pin size | ϕ0.23mm (.009inch) |
| Hermetic/IP Rating | |
| Body Material & Plating | Stainless Passivated |
| Remarks |
