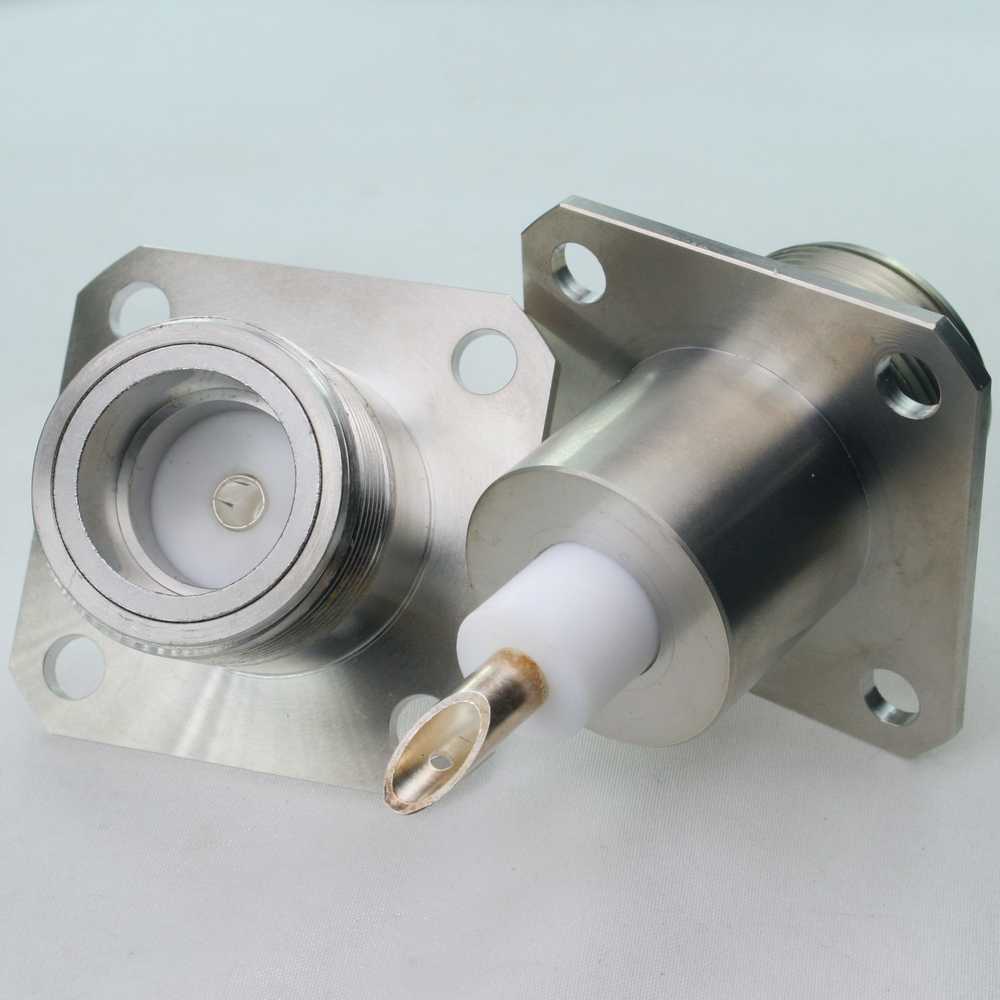

LC jack SQ 50.8mm 4 hole flange with solder cup contact; 1GHz VSWR1.2
Jyebao LC8640A-0000 - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | LC |
|---|---|
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange 50.8SQ |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Contact Pin Type | Solder Cup Contact |
| Pin OD (mm) or Thread (M) Flange connectors | 6.35 |
| Pin Protrusion (mm) Flange connectors | 11.6 |
| Dielectric Protrusion (mm) Flange Connectors | 17.9 |
| Body Material | Brass |
| Body Plating | Tin-Zinc-Copper |
| Hermetic/IP Rating | |
| Remark |
