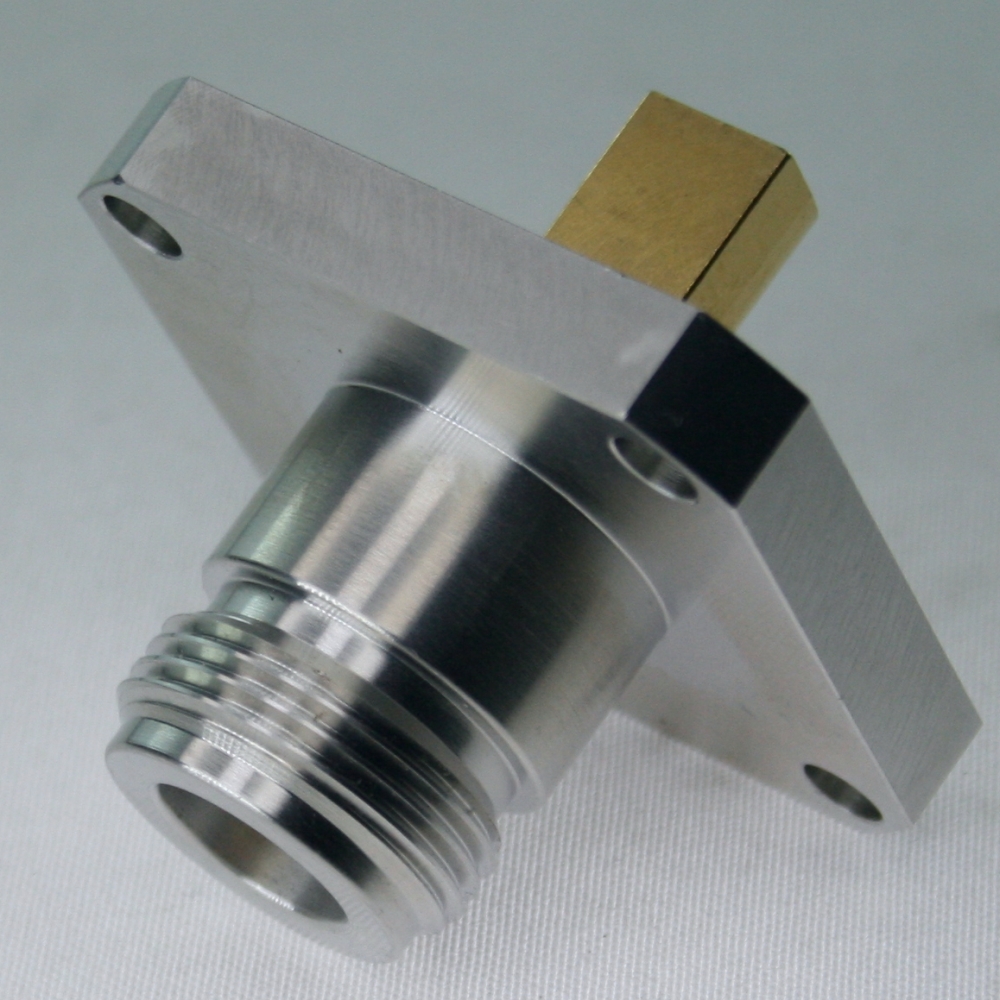

N jack SQ 32mm 4 hole flange; 7.5GHz VSWR1.2
Jyebao N864TI-0000 - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | N |
|---|---|
| Connector Gender | Jack |
| Geometry | Straight |
| Configuration | 4 Hole Flange 32SQ |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Contact Pin Type | |
| Pin OD (mm) or Thread (M) Flange connectors | 7.0 |
| Pin Protrusion (mm) Flange connectors | 12.1 |
| Dielectric Protrusion (mm) Flange Connectors | 0.0 |
| Body Material | Brass |
| Body Plating | Tin-Zinc-Copper |
| Hermetic/IP Rating | |
| Remark |
