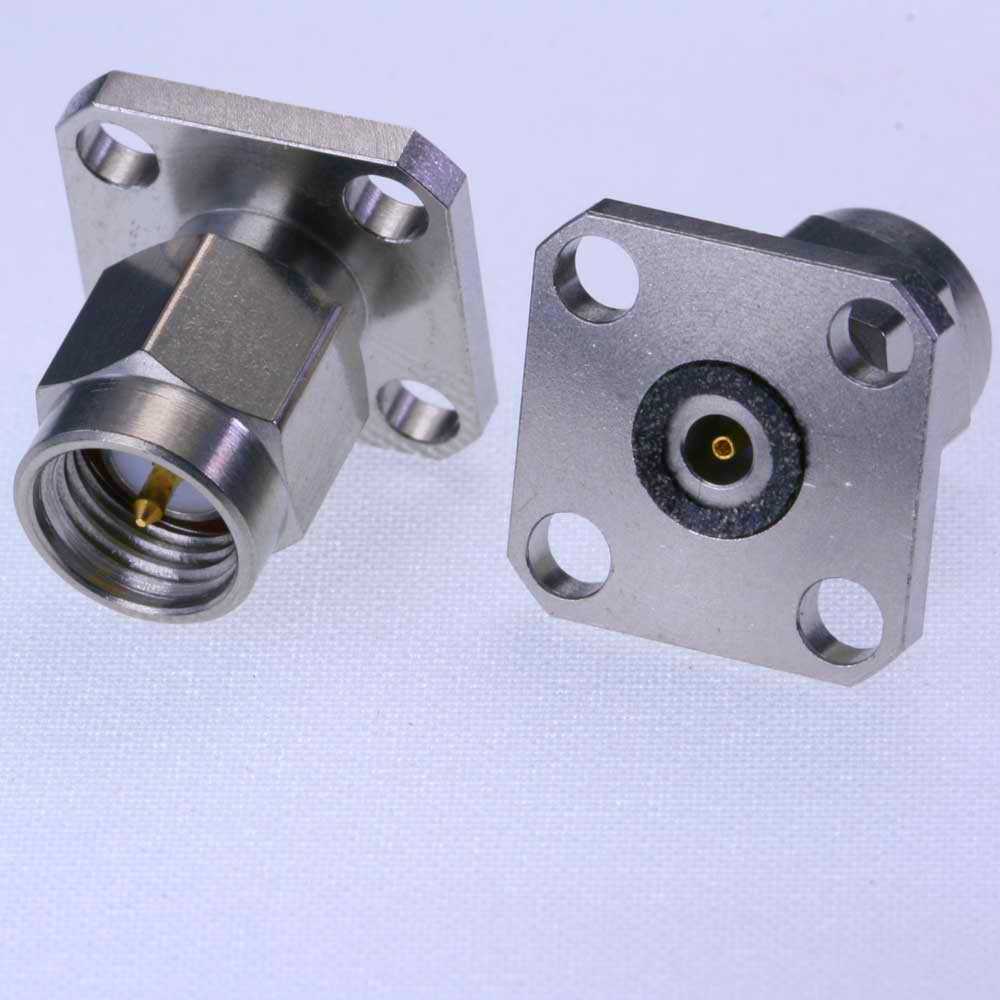

Jyebao SMA3F46C-0020 - SMA field replaceable plug, square 12.7mm (.500inch) 4 hole flange with EMI gasket, accepts ϕ0.51mm (.020inch) pin, 27GHz VSWR1.2

SMA field replaceable plug, square 12.7mm (.500inch) 4 hole flange with EMI gasket, accepts ϕ0.51mm (.020inch) pin, 27GHz VSWR1.2
Jyebao SMA3F46C-0020 - RF Connectors: Field Replaceable Connector

Connector Series	SMA
Connector Gender	Plug
Configuration	4 hole flange 12.7(.500)SQ
EMI gasket or Metal Contact ring	EMI gasket
Frequency & Max VSWR	27GHz VSWR1.2
Accepts pin size	ϕ0.51mm (.020inch)
Hermetic/IP Rating
Body Material & Plating	Stainless Passivated
Remarks

Contact for pricing
