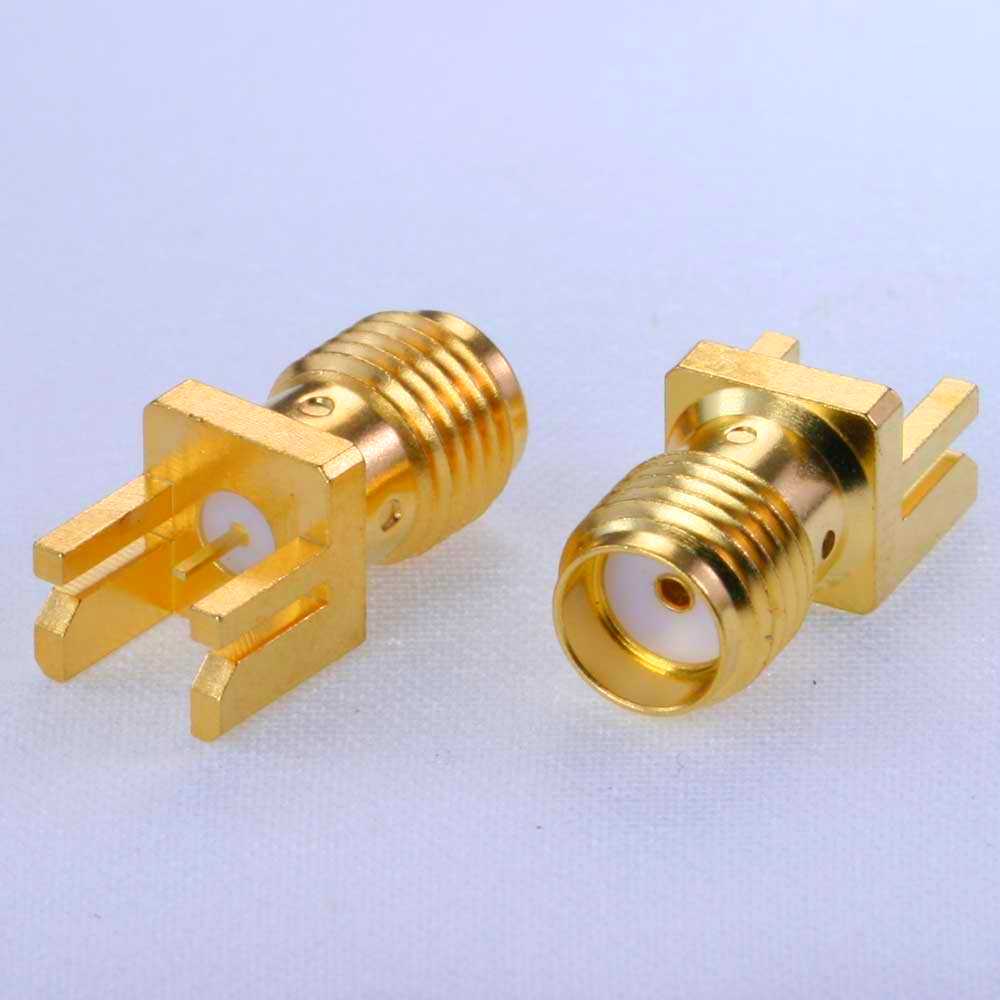

SMA jack PCB mount end launch (T=0.75) with tab contact (W=0.5;T=0.25;L=2.5); 18GHz VSWR1.2
Jyebao SMA84ND-0000 - RF Connectors: PCB Mount Connector
| Connector Series | SMA |
|---|---|
| Connector Gender | Jack |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Geometry | Straight |
| Configuration | PCB Mount End Launch |
| Contact Pin Type | Tab Contact |
| IP Rating | |
| Remark | Max PCB thickness = 0.75mm (.030inch) |
