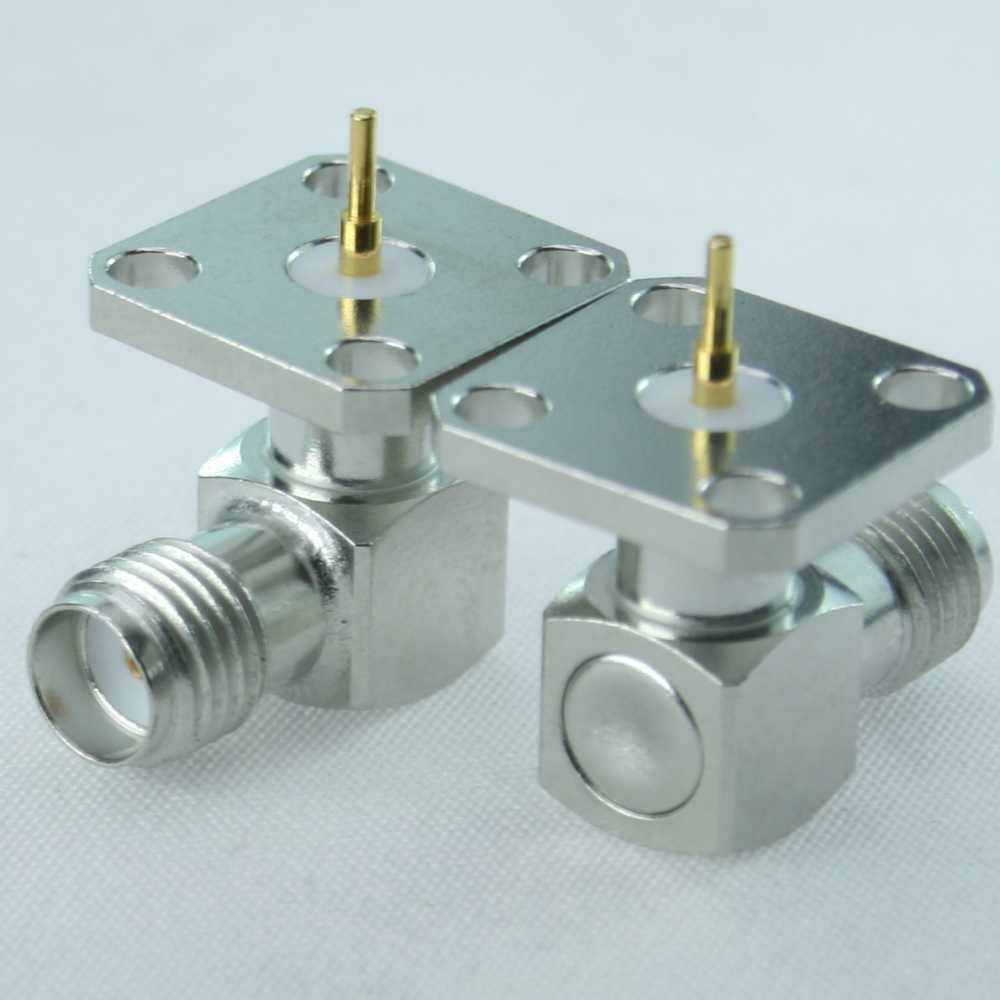

SMA jack SQ 12.7mm 4 hole flange right angle with round contact (Φ1.27 with L=1.7 and Φ0.8 with L=3.35); 12Ghz VSWR1.2
Jyebao SMA864C2-9000/W - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | SMA |
|---|---|
| Connector Gender | Jack |
| Geometry | Right Angle |
| Configuration | 4 Hole Flange 12.7SQ |
| Connector Polarity | Standard polarity |
| Impedance | 50ohm |
| Contact Pin Type | Round Contact |
| Pin OD (mm) or Thread (M) Flange connectors | 0.8/1.27 |
| Pin Protrusion (mm) Flange connectors | 3.35/1.7 |
| Dielectric Protrusion (mm) Flange Connectors | 0.0 |
| Body Material | Brass |
| Body Plating | Tin-Zinc-Copper |
| Hermetic/IP Rating | |
| Remark |
