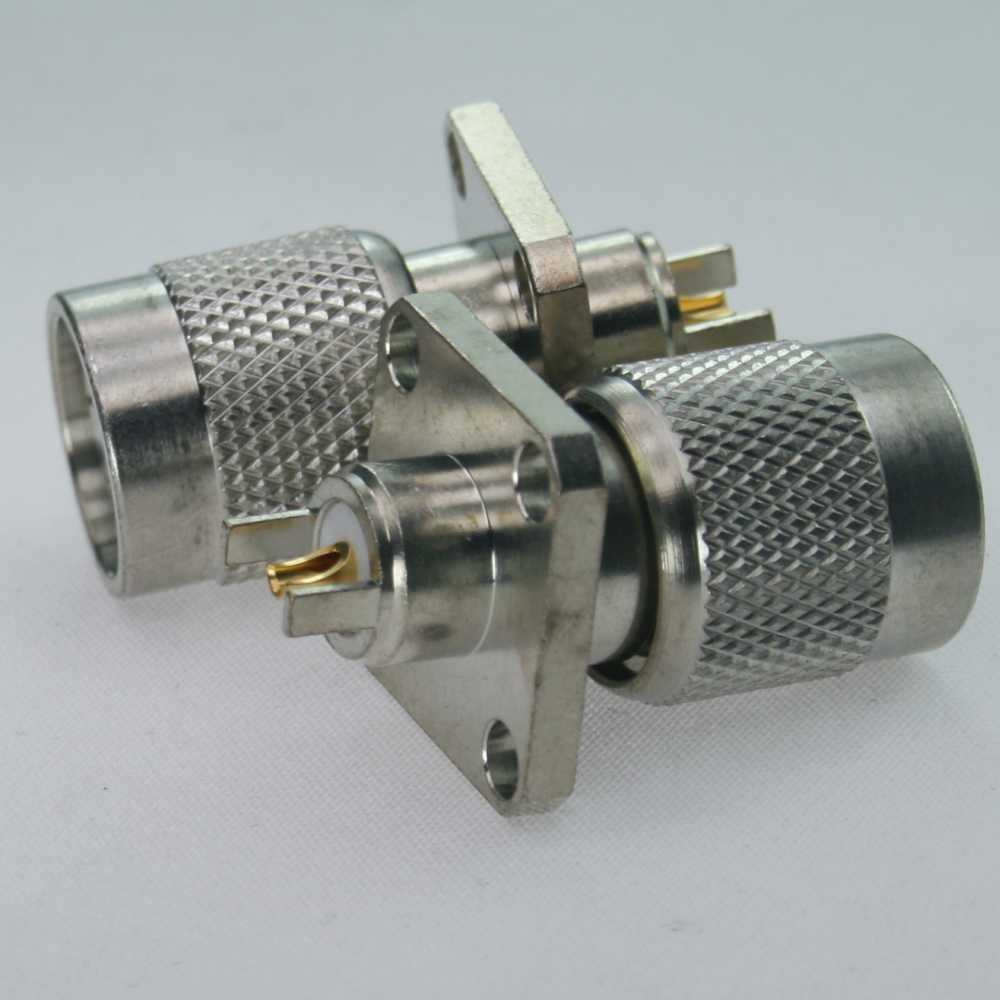

TNC reverse polarity plug SQ 17.5mm 4 hole flange with solder cup contact; 11GHz VSWR1.2
Jyebao TNC6642-0000 - RF Connectors: Panel&Bulkhead receptacle
| Connector Series | TNC |
|---|---|
| Connector Gender | Plug |
| Geometry | Straight |
| Configuration | 4 Hole Flange 17.5SQ |
| Connector Polarity | Reverse polarity |
| Impedance | 50ohm |
| Contact Pin Type | Solder Cup Contact |
| Pin OD (mm) or Thread (M) Flange connectors | 2.1 |
| Pin Protrusion (mm) Flange connectors | 4.0 |
| Dielectric Protrusion (mm) Flange Connectors | 0.0 |
| Body Material | Brass |
| Body Plating | Tin-Zinc-Copper |
| Hermetic/IP Rating | |
| Remark |
